AUCTION : 220501

Horology & Jewelry Live Auction Event
Sunday, May 1st, 2022

- No Reserves - No Buyer's Premium - No Sales Tax - No Online Bidding Fees -

To be held at the Doubletree by Hilton Manchester Downtown Hotel, 700 Elm St, Manchester NH.

Preview 8am-10:45am, Auction starts at 11am.


THIS IS A PARTIAL CATALOG as of 03/15/2022, subject to revision.

All are welcome to attend live, in person!
We will also accept live online bidding and pre-arranged telephone bids.



PW Movements and Dials Only

Stock#: JH55623

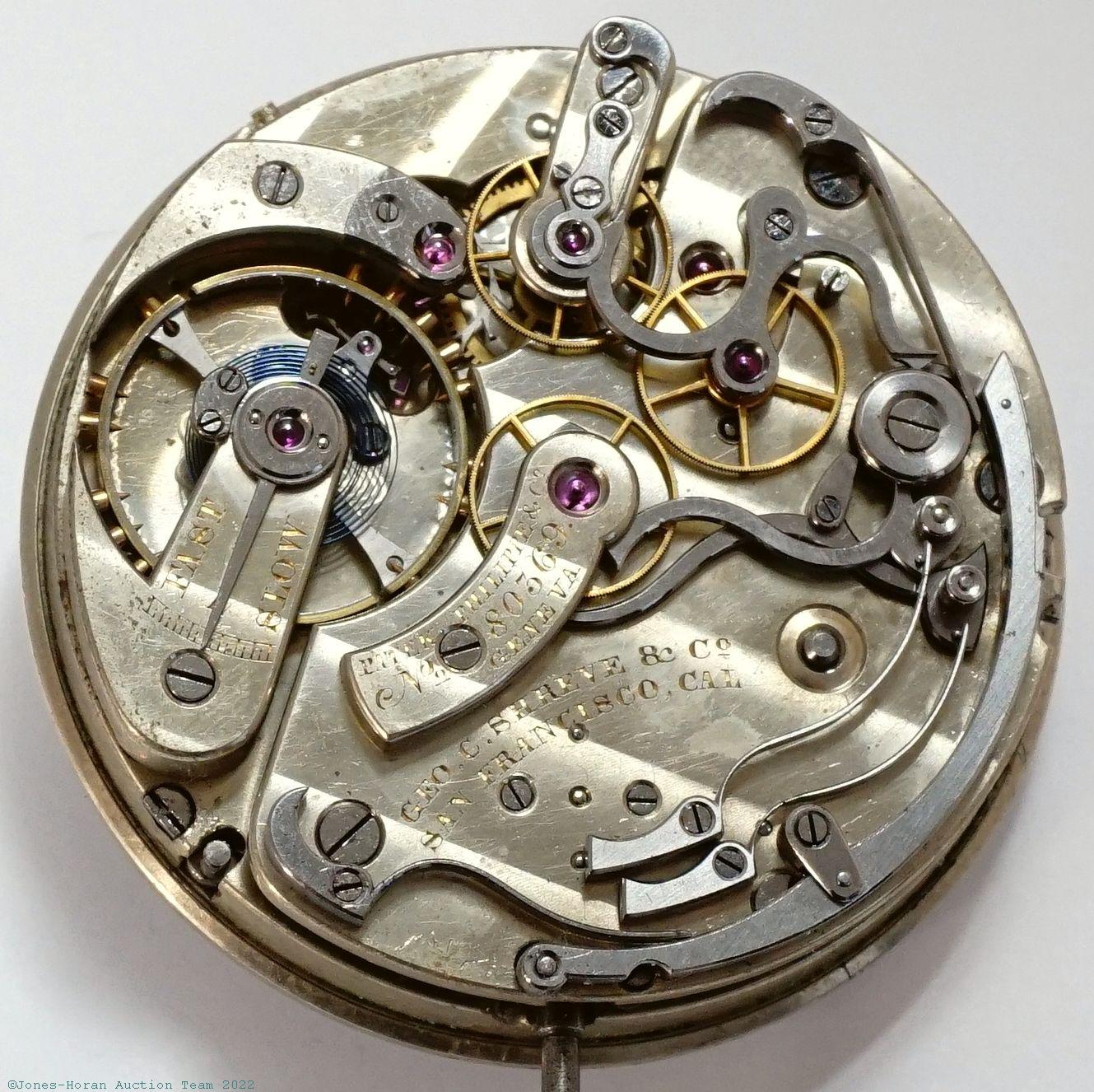

DESCRIPTION: PW mvt only - Patek Philippe, Genève, split-seconds chronograph, mvt and dial marked for retailer Geo. C. Shreve & Co. of San Francisco, California, 44mm dial canister ring diameter, OF model mvt, white enamel SS dial, SW-SS, fully capped lever escapement with counterpoise, at least 22J, fausses-côtes pattern nickel damascene, s#80369.
CONDITION: Mvt: Running, stem pulling freely fully out of mvt, setting function unknown, good primary chronograph function, split-seconds with good stop function but reset function is inconsistent and typically only resets partially when hands are beyond a small interval apart, overhaul needed to secure stem, establish setting function and for normalized split-seconds function, fine cosmetic mvt condition overall, scattered fine to micro-fine scratches, plates with some spotting which is most notable to escape wheel bridge and to perimeter of balance cock; virtually flawless dial with few minuscule pinpoint edge nicks; excellent hands, minute with finish loss near tip.
ESTIMATE: $2000 - $3600

Show All Images
Back to top of page

Stock#: JH55670

DESCRIPTION: PW mvt only - Patek Philippe, Genève, split-seconds chronograph, mvt and dial marked for retailer Wright, Kay & Co. of Detroit, Michigan, 43mm dial canister ring diameter, HC model mvt, white enamel SS dial, SW-SS, fully capped lever escapement with counterpoise, at least 22J, fausses-côtes pattern nickel damascene, s#90278.
CONDITION: Mvt: Running, primary chronograph motion works not engaging when spring is depressed and spring requires strong pressure to depress, split-seconds function unknown, overhaul needed for chronograph functions, fine cosmetic mvt condition overall, plates with surface toning and surface dirtiness; dial with small edge chip near 5:30, very small edge chip near 3:30; hands are missing, posts for hands are present.
ESTIMATE: $2000 - $3600

Show All Images
Back to top of page

Stock#: JH56523

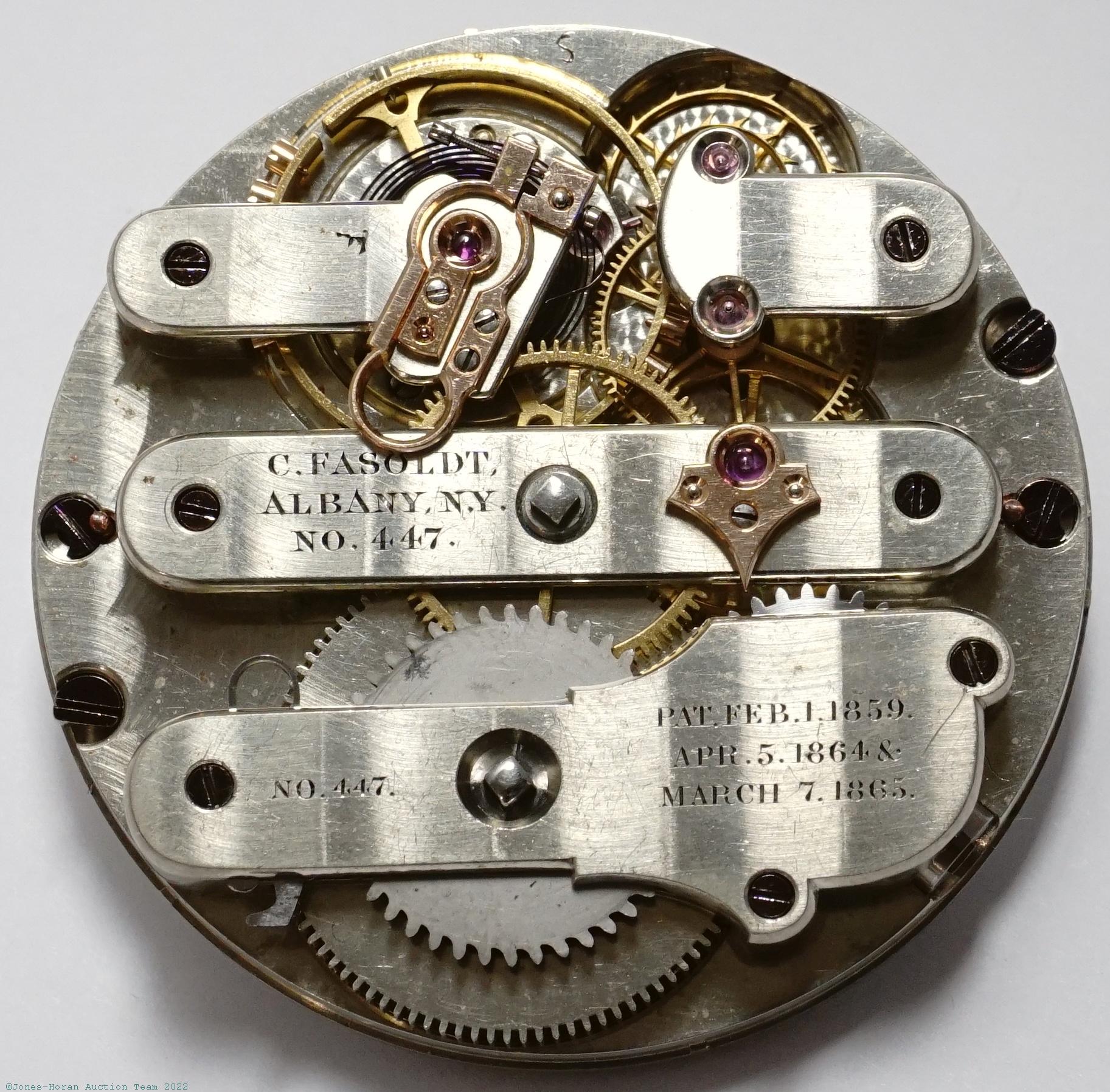

DESCRIPTION: PW mvt only - Charles Fasoldt, Albany, NY, co-axial double wheel escapement lever chronometer, 16J, approximately 20S (46.7mm dial plate diameter), HC model mvt, "C. Fasoldt Patent Chronometer Albany, N.Y." marked white enamel SS dial, KWKS, co-axial chronometer lever escapement, rose gold Fasoldt patent regulator, rose gold third wheel jewel setting, fausses-côtes pattern nickel damascene, s#447. From the Wing family collection.
CONDITION: Mvt: Running, surface of balance cock has been marked with a small "F" and surface of dial plate with an "S," otherwise excellent cosmetic mvt condition overall, bright lustrous surfaces, plates with some fine scratches and mild surface spots, few oxide spots and abrasion spots to visible portion of crown wheel; dial with edge chip at 9:30, few scattered hls; hands are missing, posts for hands are present.
ESTIMATE: $2000 - $3600

Show All Images
Back to top of page

Stock#: JH56826

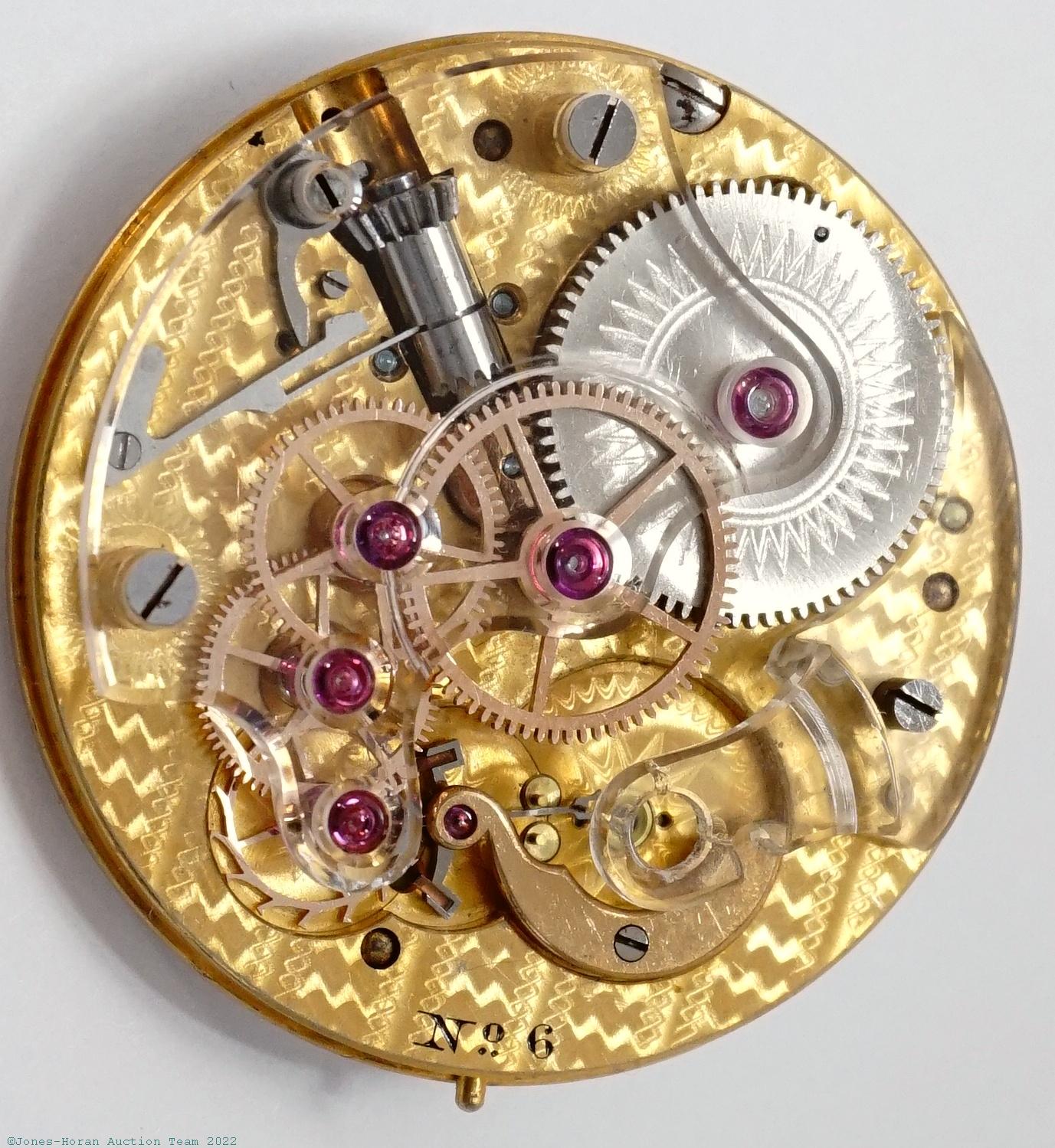

DESCRIPTION: PW mvt only - Waltham, Crystal Plate serial #6, 17J, 4S, HC model mvt with conversion style dial with pendant at 12 allowing proper orientation within OF case, white enamel dial without seconds-register, lever escapement, originally with free-sprung balance but presently with a replacement balance wheel included with lot, jeweled barrel arbor, gold train, back plate and balance cock constructed from polished transparent rock crystal, gilt damascene dial plate, s#6. The Waltham Crystal Plate watches are among the most beautiful and iconic pieces in American horology, and these movements have a strikingly unique appearance with red ruby jewels friction set into transparent plates giving the illusion of their floating in mid-air. In total it is believed that approximately 75 examples of the 4 size crystal plate movement were produced. The present example is notable for its particularly low serial number and its earlier style plate design that was likely only used among the first 20 or fewer examples of 4 size Crystal Plate production. This movement is currently in need of skilled restoration due to damage to its balance cock and loss of its original balance assembly, yet remains a very worthwhile project.
CONDITION: Mvt: NR, incomplete lacking its original balance and upper balance jewels, balance wheel presently with lot is from a different mvt and has an incorrect style hairspring stud, one horn of pallet is broken off, crystal balance cock with two visible fractures to terminal portion around balance jewel recess, small flaking around balance jewel recess, small chip of loss to portion of cock which secured original hairspring stud, main crystal plate excellent with few small fine scratches, gilt dial plate with excellent color and luster; dial with light perimeter hl between 7 and 9, few scattered tiny edge nicks; hands are missing.
ESTIMATE: $1000 - $2000

Show All Images
Back to top of page

Stock#: JH55666

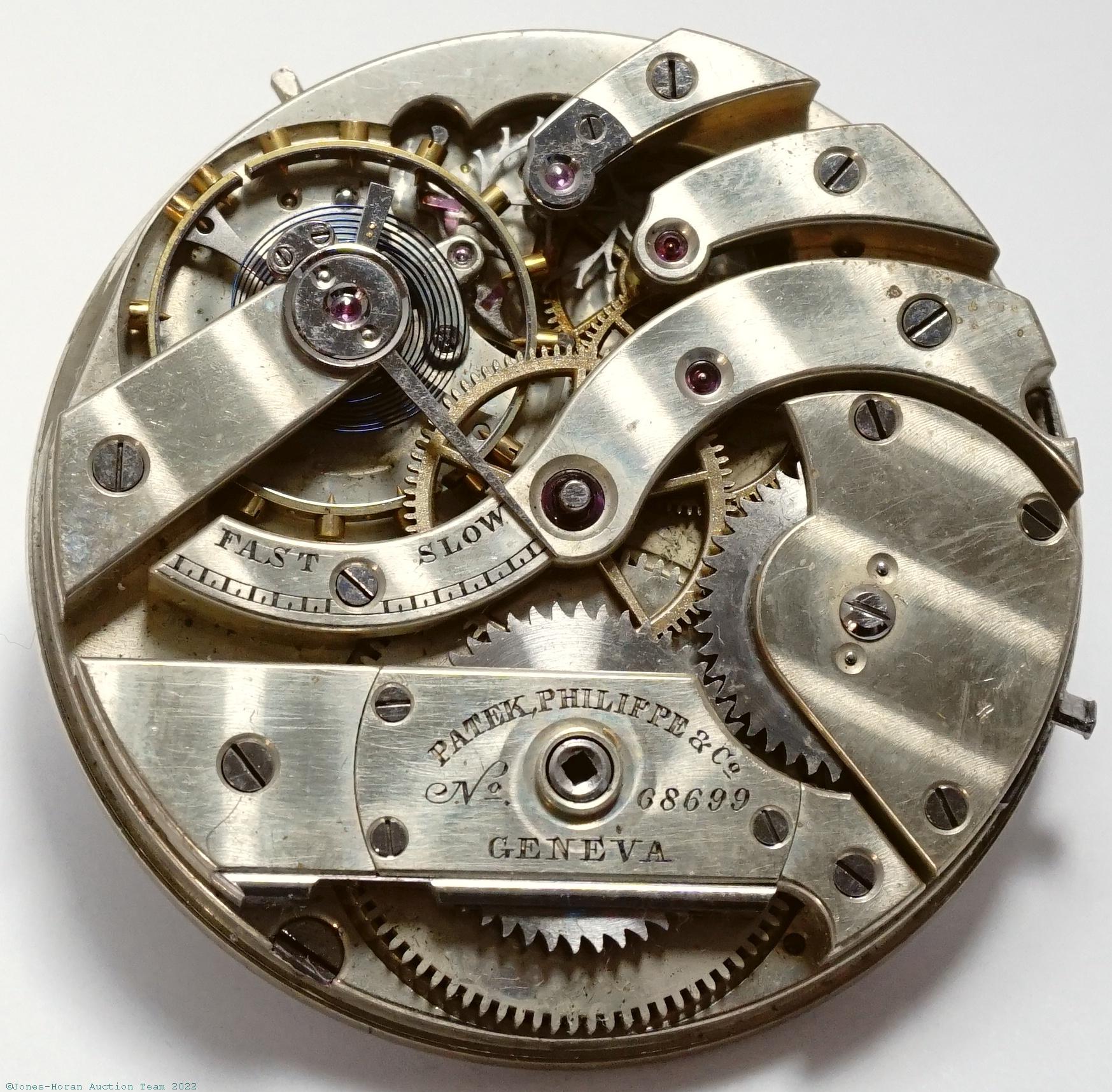

DESCRIPTION: PW mvt only - Patek Philippe, Genève, 43mm dial canister ring diameter, HC model mvt, white enamel SS dial, SW-SS, lever escapement with moustache counterpoise and capped escape wheel, 18J, wolf's tooth winding, fausses-côtes pattern nickel damascene, s#68699.
CONDITION: Mvt: Running, fine-plus cosmetic mvt condition overall, small "# 744" marking scribed to surface of crown wheel bridge near perimeter, small dark spots at perimeter of center bridge; nearly flawless dial with few small micro-fine scratches, some surface dirtiness; fine hands, minute with mild bends near base.
ESTIMATE: $1000 - $1400

Show All Images
Back to top of page
